Wheels set nylon 160 mm diameter
€150,00
CASCOO
Wheels set nylon 160 mm diameter
EUR 150,00
Excl. tax
EUR 181,50
Incl. tax
- Uitstekende kwaliteit
- Laagste prijs garantie
- Snelle levering
- More information? Contact us about this product
- Add to comparison list
Product description
Wheels set nylon 160 mm diameter
Wheels sets of 160 mm diameter are intended for tipper containers from 300L to 600L.
Description:

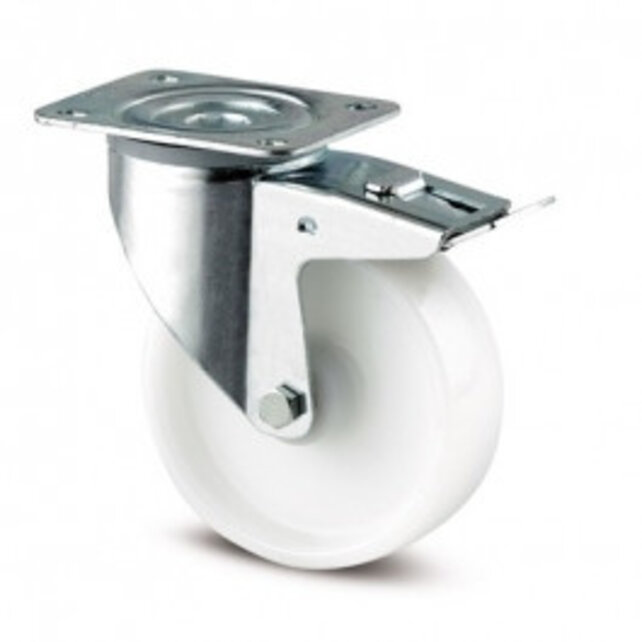

Swivel wheel:
Swivel castor with total lock, tail end of castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, dustguard, plate fitting. Wheel centre made of Polyamide, roller bearing.
Fixed wheel:
Fixed castor, Fork made of pressed steel, bright zinc plated, blue passivated, wheel axle with nut, plate fitting. Wheel centre made of Polyamide, roller bearing.
Specifications:
Swivel wheel:
Wheel diameter |
160 mm |
Width of Tread |
40 mm |
Size of Plate |
137 x 105 mm |
Plate hole centres |
105 x 80/75 mm |
Plate hole |
11 mm |
Offset |
60 mm |
Swivel Interference |
334 mm |
Overall height |
200 mm |
Temperature |
- 40 / + 80 °C |
Standard |
EN 12532 |
Weight |
2.16 kg |
Swivel Radius |
167 mm |
Hardness of tread |
Shore D 75 |
Load capacity |
350 kg |
Load capacity (static) |
700 kg |
Fixed wheel:
Wheel diameter |
160 mm |
Width of Tread |
40 mm |
Size of Plate |
137 x 115 mm |
Plate hole centres |
105 x 80/75 mm |
Plate hole |
11 mm |
Overall height |
200 mm |
Temperature |
- 40 / + 80 °C |
Standard |
EN 12532 |
Weight |
1.35 kg |
Hardness of tread |
Shore D 75 |
Load capacity |
350 kg |
Load capacity (static) |
700 kg |

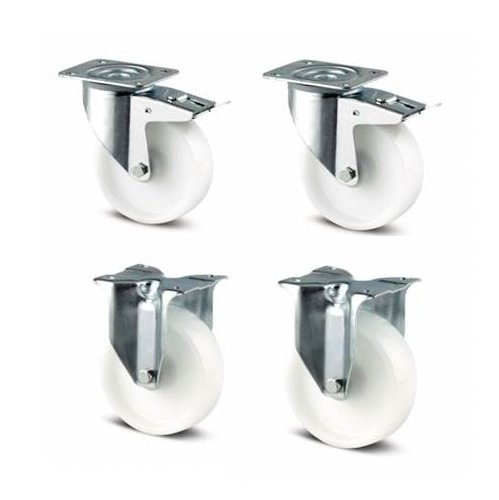

The wheels are delivered as a set of 4 pieces, including mounting material.
Product information
| Brand | CASCOO |
| Article code | SBTCWHL160NYT |
| SKU | SBTCWHL160NYT |
