Product description

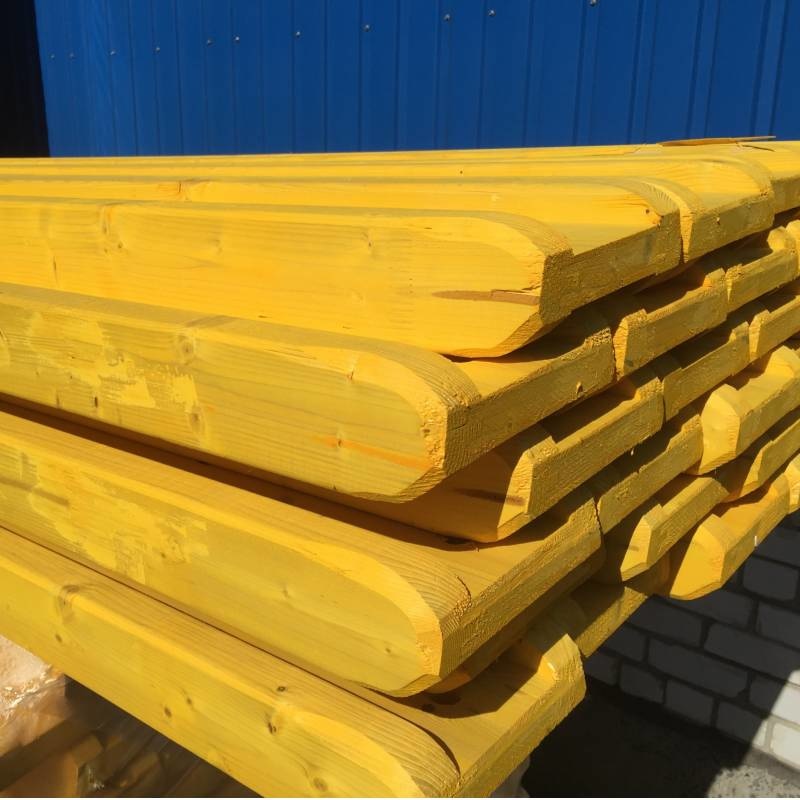

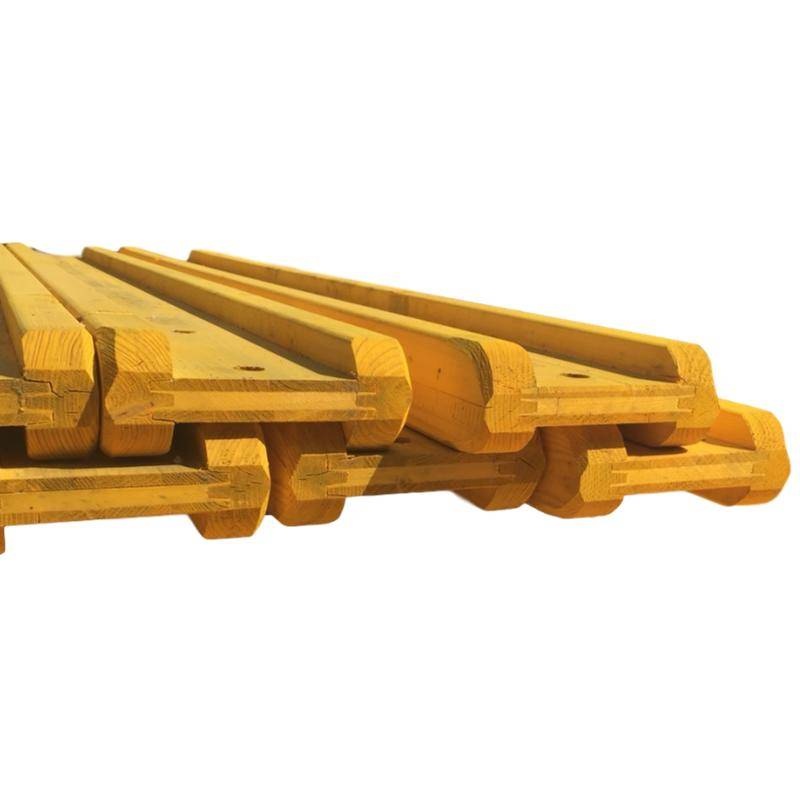

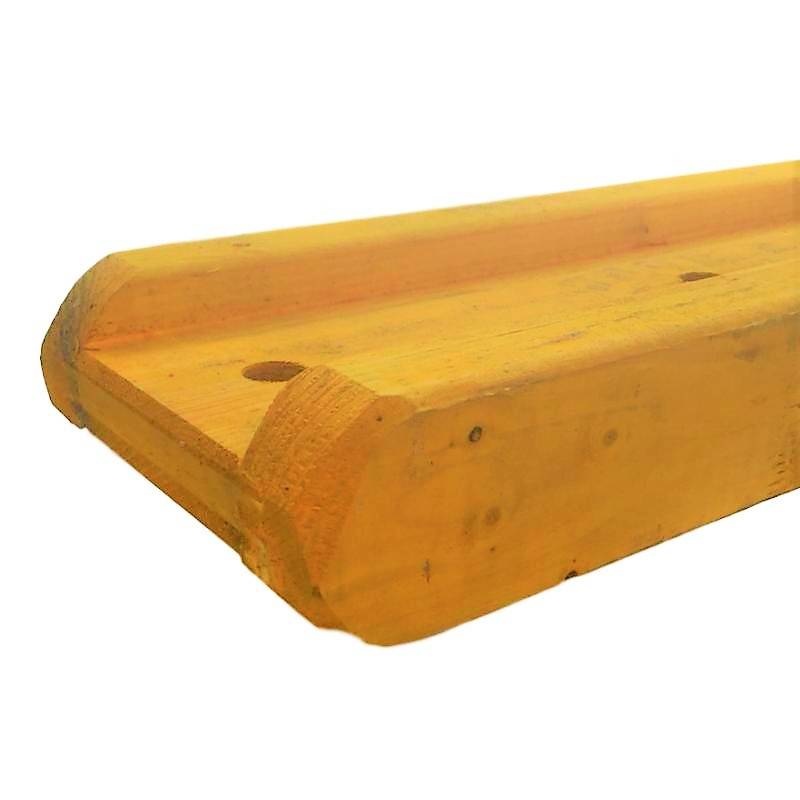

H Beam H20 for Formwork

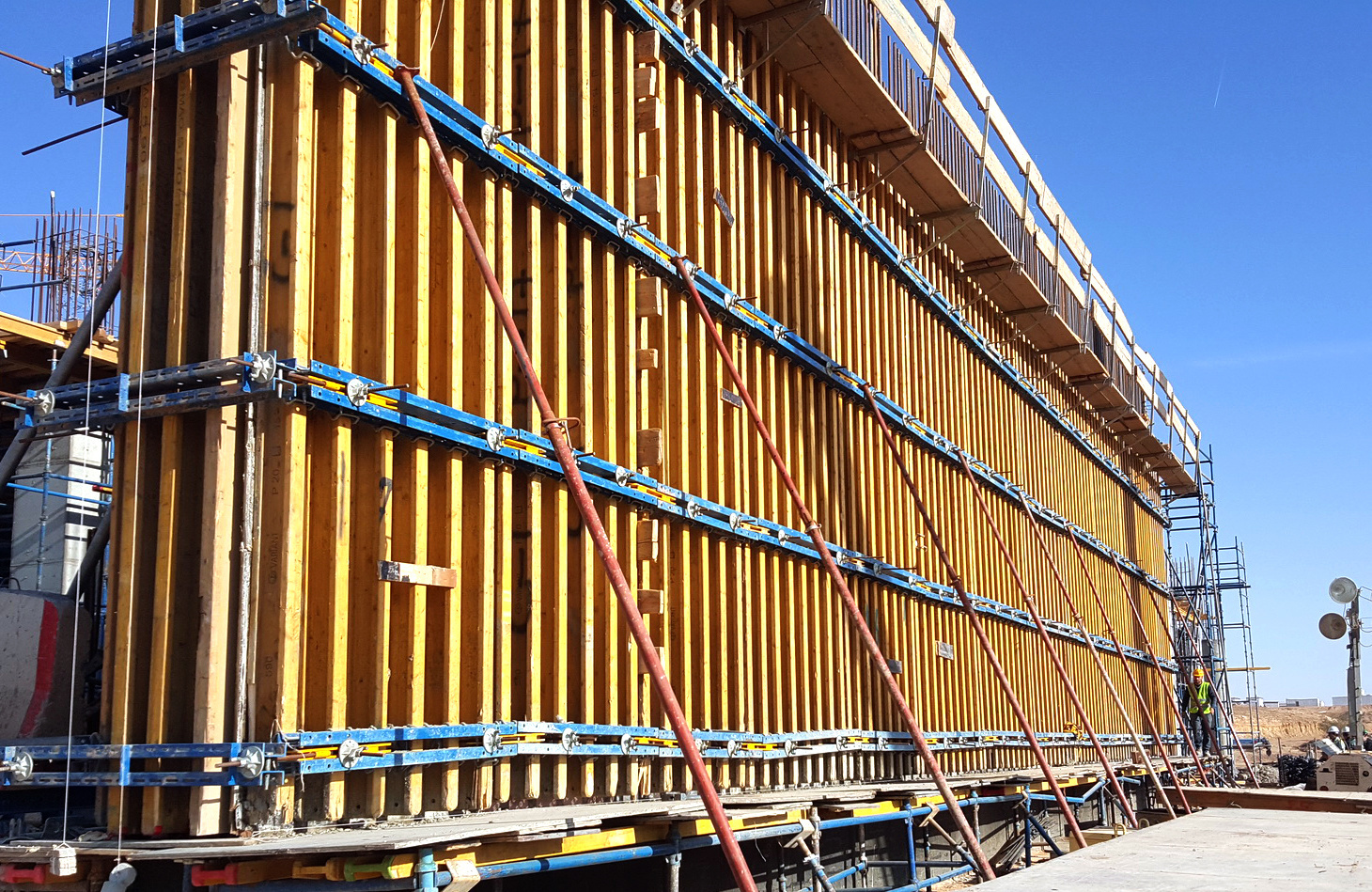

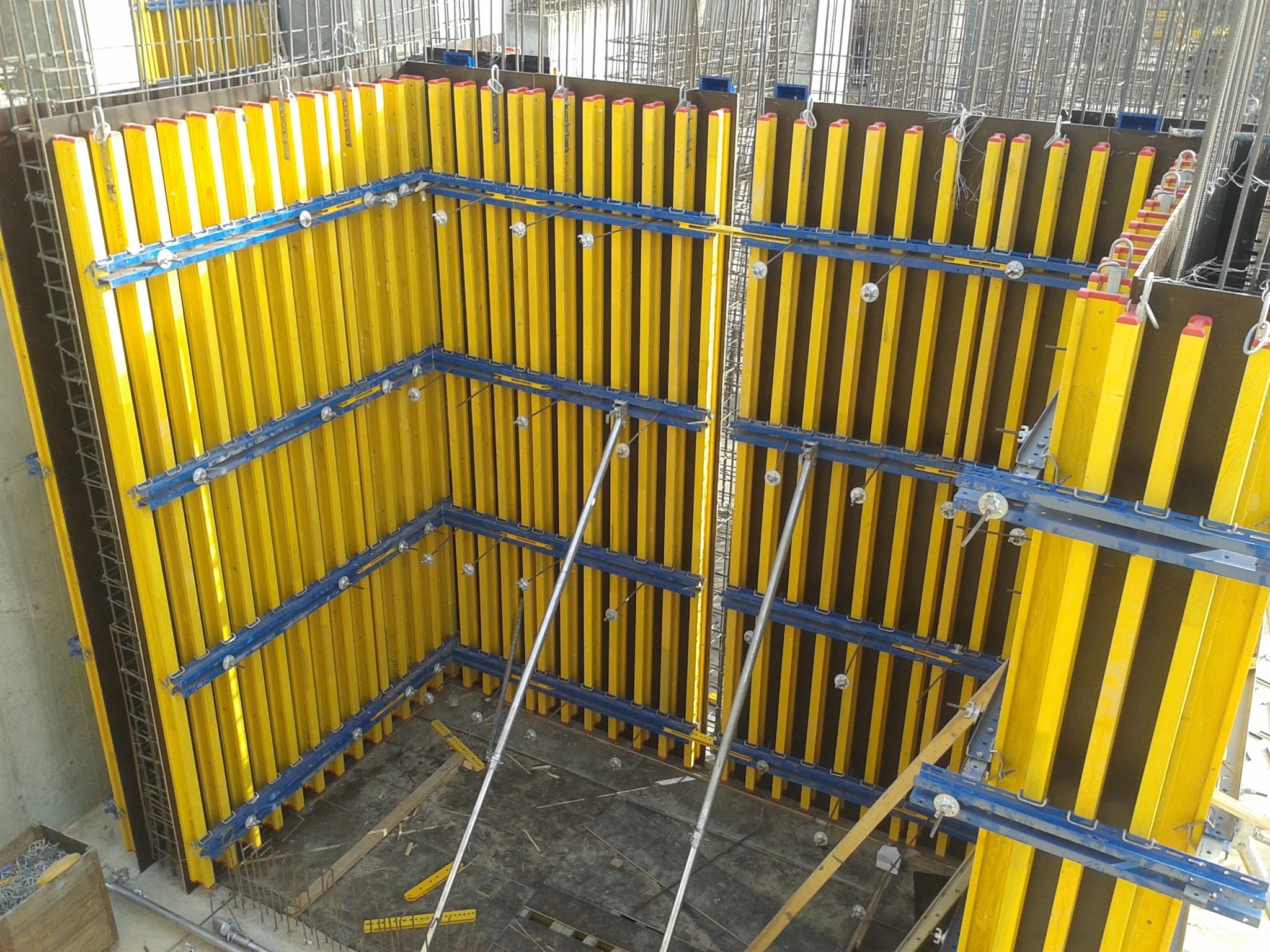

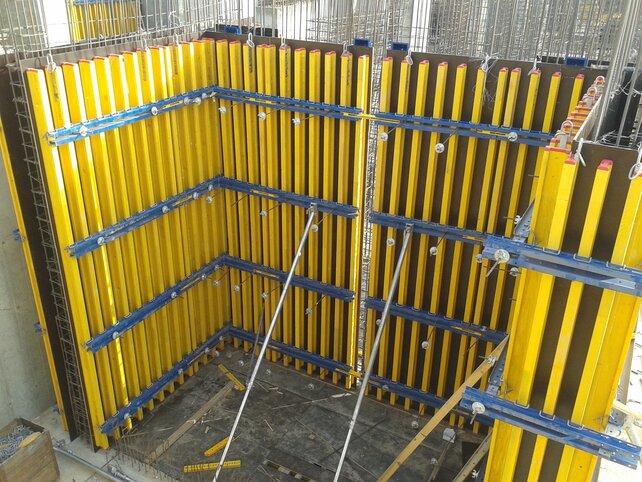

Multiple use, long lifespan, cost-efficient H20 beams for Formwork.
Specifications
-
Permitted bending moment M = 5.0 kNm
-
Permitted transverse strength T = 11.0 kN
-
Characteristic limit of the transverse strength Vk = 23.9 kN
-
Characteristic limit of the bending moment Mk = 10.9 kNm
-
Used Spruce in compliance with DIN 4074-1 1
-
License number: Z-9.1-647
Dimensions
-
Lengths from 1.45 m up to 5.90 m
-
Width = 80 mm
-
Height = 40 mm
-
Weight = 5.0 kg/lin.m
# |
Length (mm) |
Weigth (kg) |
Article Number |
1 |
1450 |
7,25 |
SBFWH20B145 |
2 |
1800 |
9,00 |
SBFWH20B180 |
3 |
1950 |
9,75 |
SBFWH20B195 |
4 |
2150 |
10,75 |
SBFWH20B215 |
5 |
2450 |
12,25 |
SBFWH20B245 |
6 |
2650 |
13,25 |
SBFWH20B265 |
7 |
2900 |
14,50 |
SBFWH20B290 |
8 |
3300 |
16,50 |
SBFWH20B330 |
9 |
3600 |
18,00 |
SBFWH20B360 |
10 |
3900 |
19,50 |
SBFWH20B390 |
11 |
4500 |
22,50 |
SBFWH20B450 |
12 |
4900 |
24,50 |
SBFWH20B490 |
13 |
5900 |
29,50 |
SBFWH20B590 |
Export to Africa (including certificates preparation)
Factory prices.
Made in EU
Contact us at any time for questions and support at [email protected]
Product information
| Brand | SalesBridges |
| Article code | SBFWH20B145 |
| SKU | SBFWH20B145 |
| EAN | 2001813342286 |
