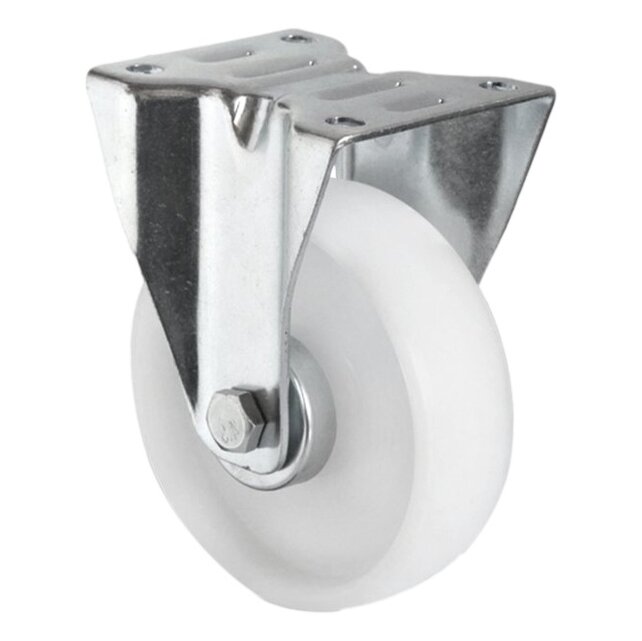

Fixed Wheel Heavy Duty 150mm 800kg High Quality Polyamide

Fixed wheel

150mm 800kg

Heavy Duty

High-quality Polyamide

Specification

• Wheel material: High-quality Polyamide

• Wheel diameter: 150 mm

• Tread width: 50 mm

• Hub width: 60 mm

• Load capacity: 800 kg

• Dimensions mounting plate: 135x110 mm

• Distance bolt holes: 105x84/76 mm

• Bolt size: M12

• Plate thickness: 5 mm

• Total height: 197 mm

• Bearings: double ball bearing 6204

• Housing surface: zinc blue

• Temperature: - 40 to + 80 ° C

• Standard: EN 12532

Fixed castor with diameter 150 mm and a load capacity 800 kg. This wheel is made of high-quality polyamide, making it extremely suitable for use on smooth and flat surfaces.

These heavy duty Polyamide wheels are wear resistant, easy to clean, high load capacity and extremely good rolling properties. They are made to carry extra heavy loads or to carry loads over even surfaces, such as in warehouses and sheds. Also suitable for heavy transport such as hard stone/granite and heavy constructions. In addition, they can withstand low and high temperatures.

It has a top plate for mounting and can be secured with 4 bolts. Check whether the size of the mounting plate and of the bolt holes correspond to what you need!

Do you need advice? Contact us immediately via email [email protected] or telephone +31652883848
