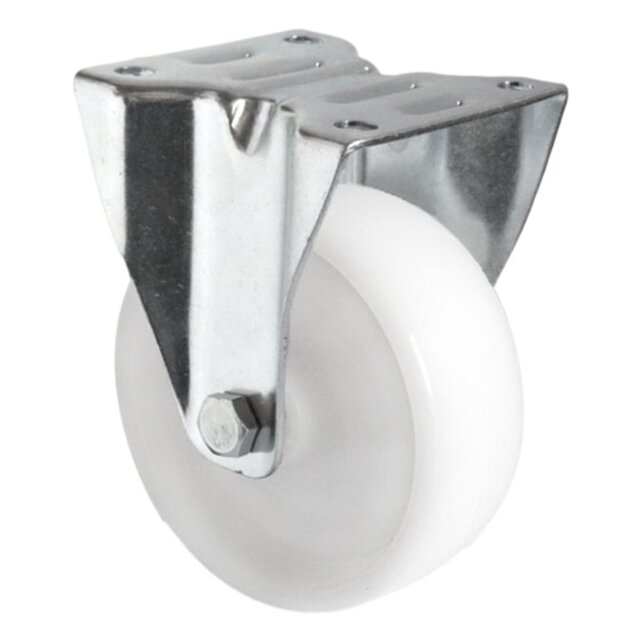

Fixed wheel Polypropylene white 100 mm diameter 100 kg load capacity

Fixed wheel

100mm 100kg

Nylon Polypropylene white

Specification

• Wheel material: Polypropylene - nylon

• Wheel diameter: 100 mm

• Tread width: 34 mm

• Hub width: 40 mm

• Load capacity: 100 kg

• Dimensions mounting plate: 105x80 mm

• Distance bolt holes: 80 / 77x60 mm

• Bolt size: M8

• Plate thickness: 2.5 mm

• Total height: 125 mm

• Bearings: roller bearing

• Housing surface: zinc blue

• Temperature: - 20 to + 60 ° C

• Standard: EN 12532

Fixed castor without brake with a diameter of 100 mm and a load capacity of 100 kg. This wheel is made entirely of nylon - polypropylene and is therefore extremely suitable for hard and flat surfaces. It is provided with a top plate for fixing and can be fixed with 4 bolts. Make sure the size of the mounting plate and bolt holes match what you need!

Nylon wheels are durable, easy to clean, have a high load-bearing capacity and good rolling properties. For uneven floors, thresholds, tiles or, for example, more sound absorption, it is better to use PU or Elastic Rubber wheels.
